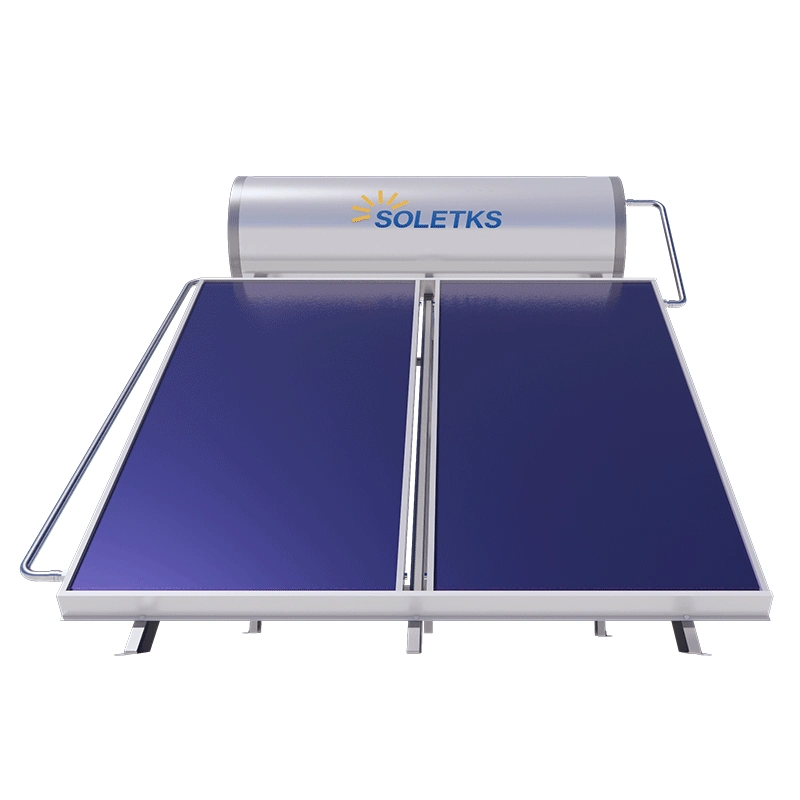

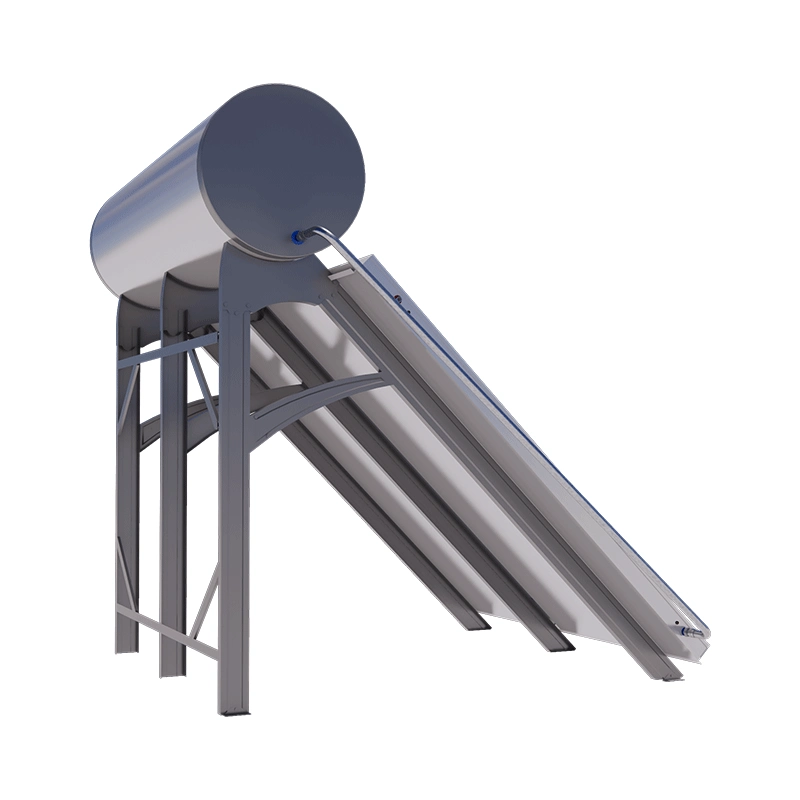

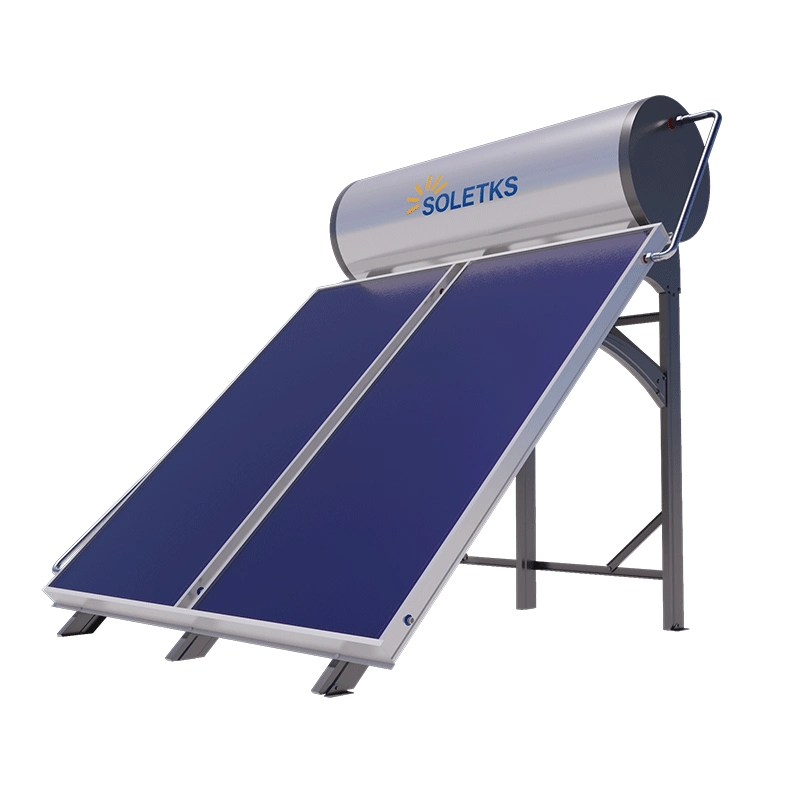

Roof Top Solar System

Modern households 'demand for hot water has evolved from basic functionality to requiring efficient, stable, and comfortable solutions. Shengtuo Ke Solar Water Heater delivers hot water supply without direct sunlight exposure. Its highly weather-resistant selective absorption coating efficiently captures solar energy, transferring heat through copper tubes to the tank's jacket. The non-contact design prevents direct contact between the water and conductive materials, ensuring safer water quality. Additionally, the heater features low-iron corrugated tempered glass for enhanced durability and safety, making it adaptable to various roof installations.

I. Application scenarios:

Villa, Pointed roof, Flat roof, Multi-storey residential buildings

The solar panel mounting system offers multiple angle brackets (0°,25°,45°) to accommodate diverse roof structures. The adjustable bracket angles allow precise alignment with roof slopes, ensuring seamless integration for flat roofs, sloped surfaces, and irregularly angled roofs. This innovative solution effectively addresses the common challenge of "difficult solar panel installation on roofs" by providing adaptable mounting options that perfectly match structural characteristics.

II. Core Advantages:

(1) Efficient heat collection, more efficient energy utilization

The efficient utilization of solar energy is crucial in product design. This all-in-one unit boasts a solar absorption ratio of up to 95%, capable of heating even under average sunlight conditions while efficiently collecting heat. Compared to traditional electric or gas water heaters, it requires no substantial energy consumption, saving household expenses and reducing pollution – perfectly aligning with the green living philosophy.

(2) Natural circulation, no power more easy

The water heater adopts the design of non-powered natural circulation, which uses the horizontal density difference between hot and cold to realize water circulation heating. There is no need to consume electricity, reduce operation cost and failure probability, and users do not need to worry about pump maintenance, so they can enjoy stable hot water safely.

(3) Multiple capacity options to suit family differences

Different family population, different water use habits, different demand for capacity. 150L,200L,300L a variety of specifications to meet the needs of different families for hot water.

A family of three selects 150L to meet the daily needs of washing and kitchen water; families with more people or a large number of bath and laundry needs can easily cope with 200L/300L, avoiding the problem of "insufficient capacity" or "waste".

(4) Operating under pressure, enjoying a torrential rain

The water flow fluctuates during the shower, significantly reducing the experience. The water heater operates using a pressure-boosting water storage tank, with the water pressure entirely determined by the tap water pressure —— No matter how much hot water remains in the tank, the showerhead maintains a steady flow of water, avoiding the issue of "the more you use, the weaker the flow becomes."

(5) Enamel inner tank + magnesium rod, durable and hygienic

The tank's quality determines both the water heater's lifespan and water quality. The all-in-one unit features an enamel tank with porcelain interior and steel exterior. The ceramic glaze layer is fixed on a specialized steel plate through high-temperature baking at over 830℃°C, resisting long-term erosion from 100℃C hot water while preventing corrosion and scaling. Combined with magnesium rods for corrosion protection, these rods actively react with corrosive substances in the water, extending tank durability and maintaining clean water quality – giving your family peace of mind with every use.

Ⅲ. Core technology + authoritative certification, quality is guaranteed

(1) Core structure technology to ensure stable operation

1. Jacket heat exchange, heating more efficient

The system operates through a thermodynamic cycle involving flat-plate collectors, circulating pipes, and a water tank jacket. Sunlight heats the collectors, transferring thermal energy to the internal medium. As the medium heats up, it rises to the water jacket where it exchanges heat with the water. The cooled medium then returns to the collectors for reheating, creating a continuous cycle that minimizes heat loss and ensures reliable hot water supply even in winter.

2. High quality insulation layer, lock heat

The water tank features a 50mm-thick high-density polyurethane foam insulation layer with an ultra-low thermal conductivity of 0.022W/(m·K), effectively preventing heat loss. This innovative design maintains stable temperatures regardless of day-night cycles or external weather conditions. Even on chilly winter nights, the water temperature remains consistently warm, allowing you to enjoy ready-to-use hot water without waiting for the system to warm up the next morning.

(2) Solarkeymark certification, reliable performance

The product performance is certified by the internationally recognized solarkeymark, which has strict standards for the heat collection efficiency, insulation performance and safety of solar products, so as to provide users with reliable quality assurance.

IV. Enamel direct solar water heate

Q&A

Q: How does a flat-panel solar water heater work?

Answer: The flat-panel solar water heater unit relies on the heat collection plate to absorb heat. The heat collection plate is built with copper tubes, and the medium inside the heat collection plate is circulated. The hot medium goes up and enters the water tank jacket for heat exchange to heat the water in the inner tank, thus providing hot water.

Q: What are the advantages of flat-panel solar water heater all-in-one?

Answer: it has the advantages of pressure operation, separate installation, integration with the building, flexible and convenient installation, beauty and no damage to the building, safety and reliability, no need for descaling, strong self-protection function, long service life, high heat collection efficiency, clean hot water generation, anti-freezing and frost resistance.

Q: Can the flat-panel solar water heater work properly in bad weather?

A: Yes. Many flat-panel solar water heater units have dual photoelectric functions. When the weather is bad, the temperature of the solar water is not high enough, and the hot water supply can be ensured by electric heating relay.

Q: Do flat-panel solar water heater units need regular maintenance?

Answer: Regular maintenance is essential. While panel solar water heaters require less upkeep than vacuum tube models, owners should still check the collector surface for dirt and clean it promptly when needed to maintain efficiency. Additionally, inspect pipeline connections for leaks to ensure smooth system operation.
