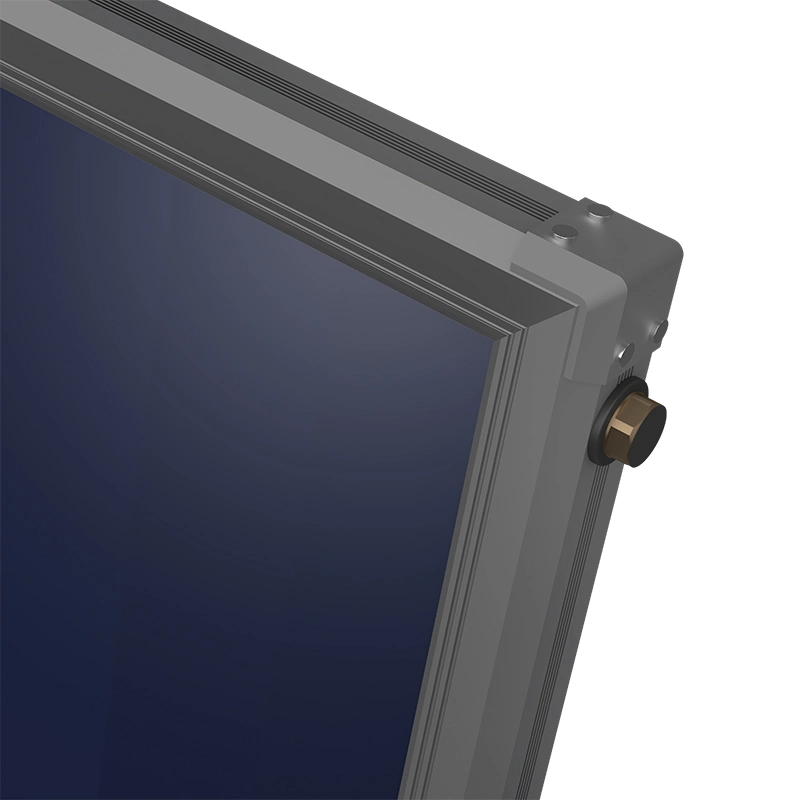

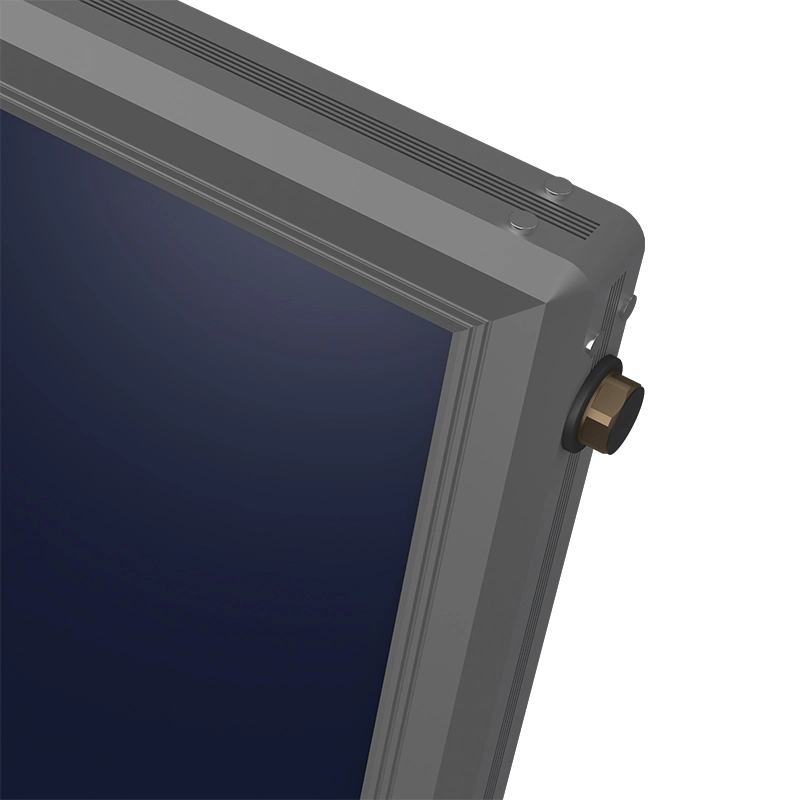

High Performance Solar Flat Plate Collector

Product Introduction:

A high-performance flat-plate solar collector is an energy-efficient device primarily composed of four key components: a heat-absorbing panel, transparent cover plate, insulation layer, and outer casing. The system works by converting solar radiation into thermal energy through the heat-absorbing panel, while the transparent cover plate minimizes heat loss from radiation and convection. The insulation layer further reduces heat conduction, enabling efficient heating of the internal working fluid (such as water or air). Compared to traditional flat-plate collectors, this design demonstrates superior advantages in flow channel configuration, thermal insulation materials, heat-absorbing film layers, and structural engineering. These innovations result in higher thermal efficiency, reduced heat loss, and enhanced collector performance. Widely used in solar water heating systems and building heating applications, it stands as a crucial component for achieving optimal solar energy utilization.

Product Features:

Black technology of blue film coating: equipped with high absorption rate blue film coating, the solar energy absorption efficiency reaches 95%±2%, which can capture sunlight energy efficiently and collect heat efficiency far beyond traditional products.

Optimized flow channel & modular design: innovative grid flow channel layout, smoother water flow, heat exchange efficiency greatly improved; support flexible series and parallel connection, easy to adapt to various tank specifications, installation compatibility is full.

Polyurethane foaming high efficiency insulation layer: 35kg/m³ high density polyurethane is used, formed by high pressure one foam process, closed cell rate is more than 95%, effectively lock heat, reduce heat loss, and the insulation performance is stable for a long time.

High transparency low iron tempered glass: ultra-white low iron tempered glass is equipped with a light transmittance of up to 94%±2%, maximizing the introduction of sunlight; combined with double-sided anti-glare coating design, both light transmission and comfort are taken into account.

Aluminum armor body: The frame is made of aviation grade S11 aluminum profile, with tensile strength of ≥160MPa, combining lightweight and high strength characteristics; the surface is used for gray metal drawing process, with outstanding texture and strong weather resistance, which is not afraid of wind and rain erosion.

Multi-scenario plug and play: equipped with 4 G3/4 internal thread interfaces, the construction efficiency is directly increased by 50%, and it is suitable for the rapid installation needs of multi-scenario.

Application scenarios:

Household hot water/heating: The daily household needs stable hot water supply and winter heating guarantee, the population size is mostly 3-5 people, sensitive to energy costs, this collector can be adapted to different types of heating area, to meet the comfort needs of home life.

Constant temperature of swimming pool: whether it is a private swimming pool or a small commercial swimming pool, it is necessary to maintain the comfortable water temperature of 26-28℃. In a humid environment, the collector can adapt to this condition and match different sizes of swimming pools to achieve stable water temperature.

Hot water/heating for hotels, hospitals and office buildings: With dense population, the demand for hot water and heating is large and concentrated, which requires high stability of equipment and installation efficiency. The collector can be composed into a large-scale system, which can be installed quickly and run stably for a long time.

Industrial preheating: There are many processes in industrial production that need to preheat materials or media. The site environment is complex, and the durability of equipment and the flexibility of heat collection scale are required. The collector can meet the preheating needs of different production scales.

Agricultural drying: In agricultural production, it is necessary to dry grains, fruits and vegetables, Chinese medicinal materials and other agricultural products, which requires high temperature stability of drying, and most of them are carried out in rural areas. The collector can be installed easily and can meet the needs of different drying capacity.

Core technology:

1. PVD high weather resistance selective coating technology

Fully automatic magnetron sputtering high weather-resistant selective absorption coating production line developed with independent intellectual property rights.

2. Patent invention of high weather-resistant selective absorption coating (blue film)

In practical product application, it has excellent optical performance α=95%(@AM1.5), ε=5.8%(@80℃), and weather resistance performance is better than similar foreign products, which can be applied to complex process environment.

3. Bonding technology

Using Bonding technology, the heat-absorbing aluminum plate and copper tube are connected 360° seamlessly, and the thermal conductivity area reaches the maximum range. The heat collector is 15% more efficient than ordinary heat collector.

Why choose Shengtuoke Group?

1. The world's leading scale and position

Flat panel collector production ranked second in the world for two consecutive years

Products are exported to Switzerland, the United States, Germany, Israel and other 65 countries and regions, 10 years compound growth rate of 88%

2. Top research and development strength

There are 7 R&D departments, 1 research institute, 1 academician workstation and 1 CNAS laboratory. Researchers account for 16% of the staff and have obtained 117 global patents

3. Intelligent manufacturing and quality assurance

With an investment of 120 million yuan, four intelligent production lines of industry 4.0 have been built, and the key links have realized automatic production.

Full scenario system solution capability

From "selling products" to "selling systems + selling scenarios", we provide more than 30 categories of clean heat energy overall solutions

4.  Authorized certification

The products have Solar Keymark, CE, RoHs, China Energy Saving Certification, China Environmental Protection Product Certification, CCC certification and so on.

Technical specifications list:

Easy to install:

Roof paving: south 30°-45° inclination, with 20cm spacing reserved for ventilation.

Wall hanging: vertical bracket is optional, wind resistance 12.

Floor support: hot-dip galvanized steel frame, modular snap fastener. Two people can install 10 pieces in one hour.

FAQ:

Q1: Will it freeze in winter?

A: -30℃ does not burst in the sun, and can be combined with antifreeze or drained back.

Q2: What should I do when a typhoon comes?

A: The whole structure passes the 2400Pa mechanical load test, can resist typhoon level 12, and can be fixed by bracket expansion bolt.

Q3: Glass self-explosion rate?

A: The tempered glass is treated with homogeneity, and the spontaneous explosion rate is less than 0.1%, and it can be replaced free of charge during the warranty period.

Q4: Is the glass hailproof?

A: The collector is selected from 3.2mm ultra-white tempered low-iron glass, which has passed the hail test with 25mm diameter ice ball and 23m/s impact speed according to IEC61215 and GB/T9535 standards, and the glass is not damaged. It can resist common hail impacts in daily extreme weather and ensure safe operation of the system.
